Handheld Rock Drill Machine
Price: |
190.0 USD |
Payment Terms: |
T/T or L/C at Sight |
Place of Origin: |
Tianjin, China (Mainland) |
Product Detail
Model No.:
Y26
Production Capacity:
25000 Sets/Year
Delivery Date:
15 Days
Specification:
Mining&Construction Machine...
Certificate:
All
Cooperative Company:
Private Ownership
Means of Transport:
By Sea or By Air
Packing:
Wooden Case or As Customer ...
Brand Name:
Dalishen
Function:
Mining & Construction
Export Area:
Worldwide
Price:US$190.0;Productivity:25000 Sets/Year;Min. Order:15 Sets;Packing:Wooden Case or As Customer Req;Transportation:By Sea or By Air;DeliveryDate:15

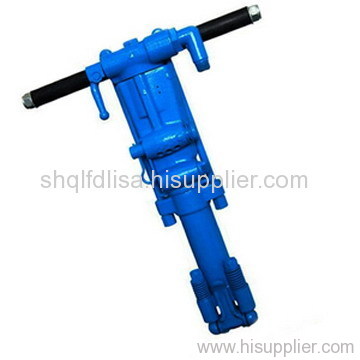

Handheld Rock Drill Machine - Y26
Y26 handheld rock drill is used in mines,railway,irrigation and quarries to dig holes or for the second digging holes. It can be used to dig dry or wet materials by horizontal, vertical or angled holes on the medium or hard rocks.
Product Specifications :
Weight 26kgs
Length 650mm
Cylinder Dia. 65mm
Stroke 70mm
Working Pressure 0.4Mpa
Water Pressure 0.3~0.35Mpa
Impact Frequency ≥23Hz
Impact Energy≥30J
Air Consumption ≤47L/s
Air Hose Inside Dia. 19mm
Water Hose Inside Dia. 13mm
Drill Bits Dia. 34~42mm
Max.Drilling Depth 5M
Drilling Rod Size H22/H25 x 108mm
Oil Feeder Type: FY200B
Capacity 200ml
Weight 1.20kgs
