Handheld & Leg Pushed Rock Drill - Y20LY

Price:	125.0 USD
Payment Terms:	T/T or L/C at Sight
Place of Origin:	Tianjin, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Y20LY

Production Capacity: 25000 Sets/Year

Delivery Date: 15 Days

Specification: Mining Machinery

Certificate: All

Cooperative Company: Private Ownership

Means of Transport: By Sea or By Air

Packing: Wooden Case or As Customer ...

Brand Name: Dalishen

Function: Mining & Construction

Export Area: Worldwide

Price:US$125.0;Productivity:25000 Sets/Year;Min. Order:15 Sets;Packing:Wooden Case or As Customer Req;Transportation:By Sea or By Air;DeliveryDate:15

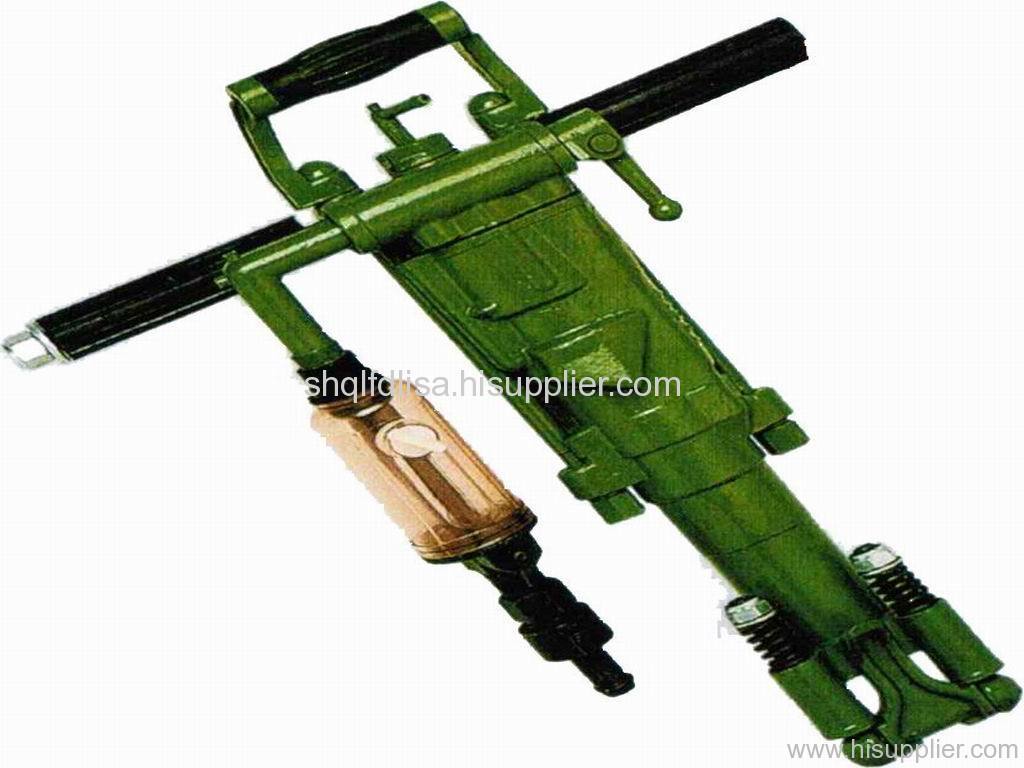

Handheld & Leg Pushed Rock Drill - Y20LY

Y20LY type rock drill is a kind of light rock drilling machine. It can be performed both dry and wet drilling under the medium and hard rocks(f=8-18).It can drill downwards with hand towards horizontal or acclive, usually it matched with FT100 air leg and FY200B oil feeder to do drilling works in various mines,quarries,capital construction of farmland,blasting for construction roads in mountain areas or other projects.

Product Specifications:

Weight 18kgs

Length 609mm

Cylinder Dia. 60mm

Stroke 50mm

Working Pressure 0,4Mpa

Impact Frequency≥30Hz

Air Consumption ≤25L/s

Air Hose Inside Dia. 16mm / 19mm

Water Hose Inside Dia. 8mm

Drill Bits Dia. 34~40mm

Max.Drilling Depth 3M
