Mining Machinery from China manufacturer - Sanhe Qiangli Pneumatic Machinery Factory

Price:	220.0 USD
Payment Terms:	FOB Tianjin , China
Place of Origin:	Tianjin, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: YT23/23D

Production Capacity: 25000 Sets/Year

Delivery Date: 15 Days

Specification: Mining Machinery

Certificate: All

Cooperative Company: Private Ownership

Means of Transport: By Sea or By Air

Packing: WoodenCaseorAsCustomerReque...

Brand Name: Dalishen

Function: Mining & Construction

Export Area: Worldwide

Price:US$220.0;Productivity:25000 Sets/Year;Min. Order:15 Sets;Packing:WoodenCaseorAsCustomerRequest;Transportation:By Sea or By Air;DeliveryDate:15

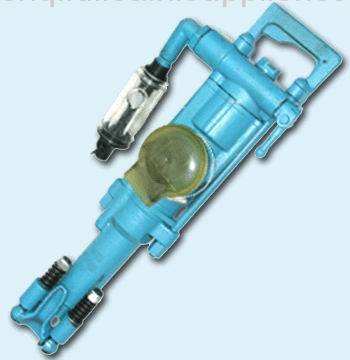

Leg Pushed Rock Drilling Machine - YT23

YT23 type rock drill is a kind of high effiency air leg rock drilling machine. It's mainly used for blasting holes and other drilling works, such as in quarries,railway construction,water conservancy construction and national defence project facility. Usually it's matched with FT160A or FT160B air leg and FY200A oil feeder to work, which can be performed on the wet drilling and blast holes from different angles.

Product Specifications :

Weight 24kgs

Length 628mm

Cylinder Dia. 76mm

Stroke60mm

Working Pressure 0.4~0.63Mpa

Impact Frequency≥34~37Hz

Air Consumption ≤50~80L/s

Impact Engery≥42~65J

Rotation Speed≥300rpm

Drilling Torque≥12~18N.m

Air Hose Inside Dia. 25mm
