Construction Drilling Machine
Price: |
220.0 USD |
Payment Terms: |
FOB Tianjin , China |
Place of Origin: |
Tianjin, China (Mainland) |
Product Detail
Model No.:
YT24
Production Capacity:
25000 Sets/Year
Delivery Date:
15 Days
Specification:
Mining&Construction Machine...
Certificate:
All
Cooperative Company:
Private Ownership
Means of Transport:
By Sea or By Air
Packing:
WoodenCaseorAsCustomerReque...
Brand Name:
Dalishen
Function:
Civil Construction, Mining,...
Export Area:
Worldwide
Price:US$220.0;Productivity:25000 Sets/Year;Min. Order:15 Sets;Packing:WoodenCaseorAsCustomerRequest;Transportation:By Sea or By Air;DeliveryDate:15

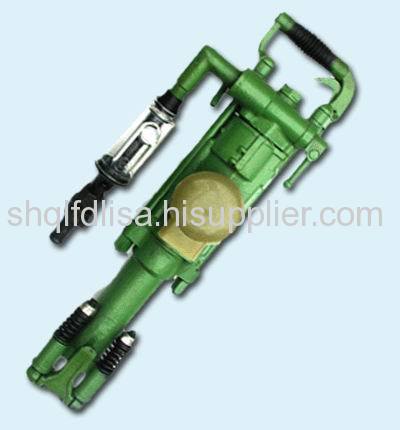

Mining Rock Tools - YT24
YT24 Type rock drill is a kind of high efficiency air leg rock drilling machine.It's widely used for blasting holes and any other drilling projects,such as in quarries ,railway construction,water consevancy construction and national defence project facility.It's suitable for drilling level or gradient holes inn the medium hardness or hard rock(f=8-18).The drilling depth can be reached to 5 meters.It's usually matched with FT140BD or FT140B air leg to use on the basis of rocks.It also can be fixed on the drilling vehicle or drilling shelf. To ensure the machine well lubricated,it’s better mach with FY200B oil feeder to give more power.
Product Specifications :
Weight 24kgs
Length 678mm
Cylinder Dia. 70mm
Stroke 70mm
Working Pressure 0.4~0.63Mpa
Water Pressure 0.3Mpa
Impact Frequency≥31Hz
Air Consumption ≤66.7L/s
Air Hose Inside Dia. 19mm
Water Hose Inside Dia. 13mm
Drill Bits Dia. 34~42mm
Max.Drilling Depth 5M
Drilling Rod Size H22 x 108mm
Air Leg Type: FT140B
Leg Length 1687mm
Stroke 1250mm
Cylinder Dia, 60mm
Weight 15.6kgs
Air Leg Type: FT140BD
Leg Length 1400mm
Stroke 965mm
Cylinder Dia. 60mm
Weight 13.9kgs
Oil Feeder Type:FY200B
Capacity 200ml
Weight 1.20kgs
